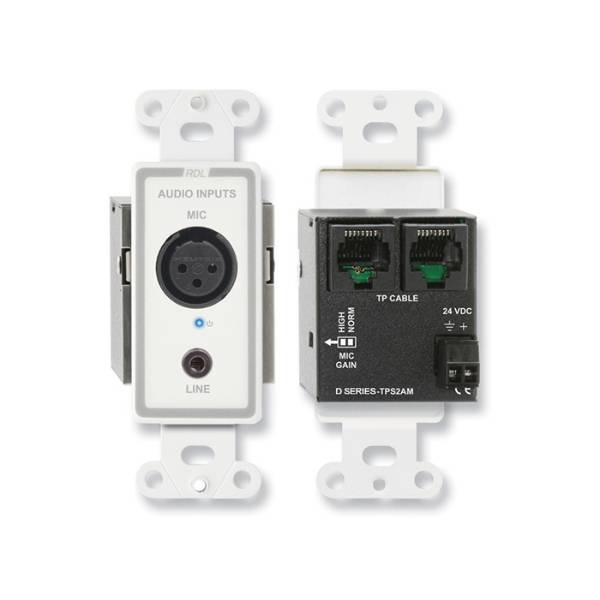

Radio Design Labs DTPS2AM - RDL Active Two-Pair Sender - Twisted Pair Format-A

Mini-jack -10 dBV Stereo Line Input Summed to Mono

MIC Feeds Pair A; Mini-jack Feeds Pair B

Remote Powering through Twisted Pair Cable

Fused Local Power Feeds all Connected Modules

Local Power Input on Terminal Block

Blue LED Indicates Module is Powered

Utilizes Two Format-A Pairs

Studio-Quality Precision Active Balanced Circuitry
