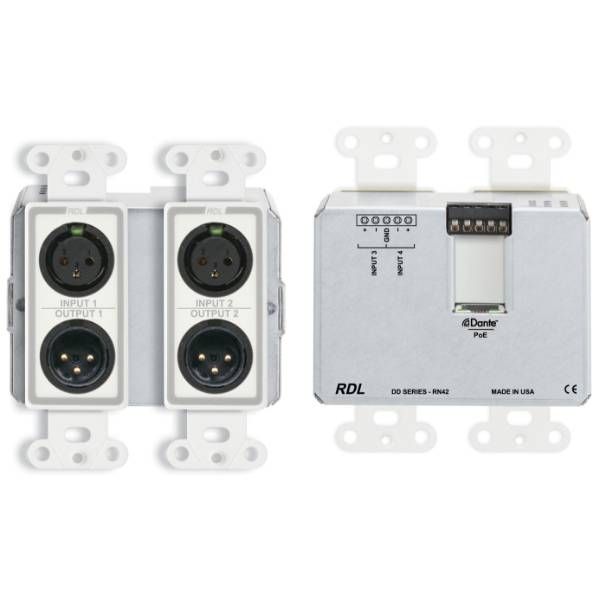

Radio Design Labs DDRN42 - RDL Bi-Directional Mic/Line Dante Interface 4 x 2

Two Inputs on Rear Panel Detachable Terminal Block

Two Inputs and Outputs on XLR Jacks on Front Panels

Dante Network Interface for Four Audio Inputs and Two Audio Outputs

Module is Configured and Adjusted Using Network Control Software

Converts Two Standard Mic or Line Audio Sources to Dante Network Channels

Each Input Gain is Selected by Software

Mic Gain: 35 dB, 42 dB or 59 dB

Line Gain: Unity or 12 dB

48 V Mic Phantom (P48) Selected by Software

Converts Two Dante Network Audio Signals to Line Level

Each Output Equipped with Software Controlled Attenuator in 1 dB Steps

Studio Quality, Low-Noise Performance

High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion

Legendary RDL Analog Filtering Enhances Superb Audio Performance
