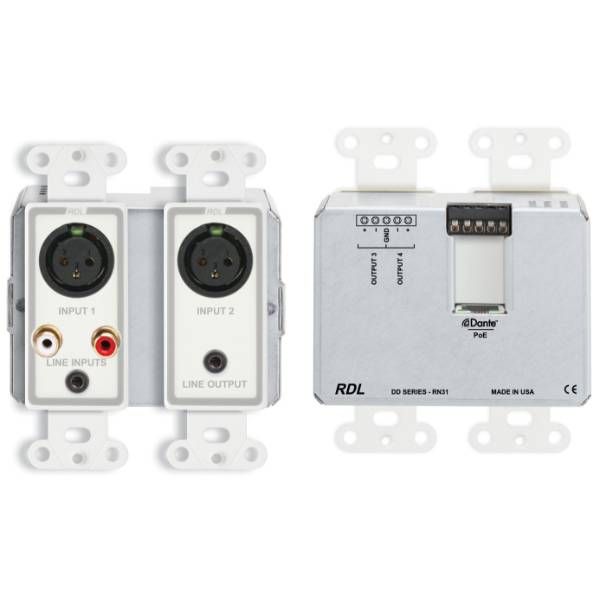

Radio Design Labs DDRN31 - RDL Wall- Mount. Bi-dir. Mic/line Interf. 4x4

Dante Network Interface for Four Audio Inputs and Four Audio Outputs

One Mini-jack, Two RCA Jacks and Two XLR Front-Panel Inputs

One Mini-jack Front-Panel Output; Two Balanced Outputs on Rear-Panel Terminal Block

Module is Configured and Adjusted Using Network Control Software

Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels

Each Input Gain is Selected by Software

Mic Gain: 35 dB, 42 dB or 59 dB

Line Gain: Unity or 12 dB

48 V Mic Phantom (P48) Selected by Software

Each Mini-jack and RCA -10 dBV Input May Feed One or Two Dante Network Channels

Converts Four Dante Network Audio Signals to Line Level

Mini-jack -10 dBV Stereo Output from Two Specific Dante Channels

Rear Panel Balanced Outputs from Two Specific Dante Channels

Each Rear Panel +4 dBu Output Equipped with Software Controlled Attenuator in 1 dB Steps

Studio Quality, Low-Noise Performance

High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion

Legendary RDL Analog Filtering Enhances Superb Audio Performance
