P5 4 Channel FN485 Bus Window Shading Controller

4 Channel FN485 Bus Window Covering Controller

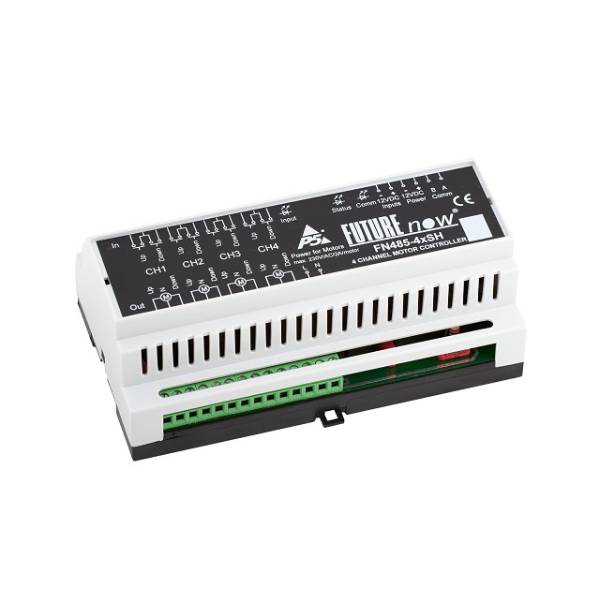

The FN485-4xSH four channel Intelligent DIN Rail Mountable Window Covering Controller is used for controlling motorized blinds, shutters awnings and projector screens or any other device equipped with four-wire bidirectional AC motor and built-in limit switches. The motors can be controlled either via the module's local inputs or via the FN485 bus.

• Control via RS485 or local inputs

• 4 outputs for controlling 4 four-wire (up, down, neutral, Earth ground) bidirectional AC motors

• 4x2 (up/down) galvanically isolated multi-purpose inputs

• Standard DIN rail mount

• The outputs can be directly operated via the local inputs without a controller

• Up, Down, Stop commands

• Adjustable motor running timer

• Separate power inputs for powering motors with different voltage requirements

• Delay when changing direction to protect the motor

• Mechanical and electronic latch preventing the motor from being driven in both directions at the same time

• 26 groups/scenes

• 50+ bus commands including setting and recall scene presets, setting the modes of operation via inputs, adjusting times, etc.
