P5 4 Channel FN485 Bus 0-10V Analogue Output Mod

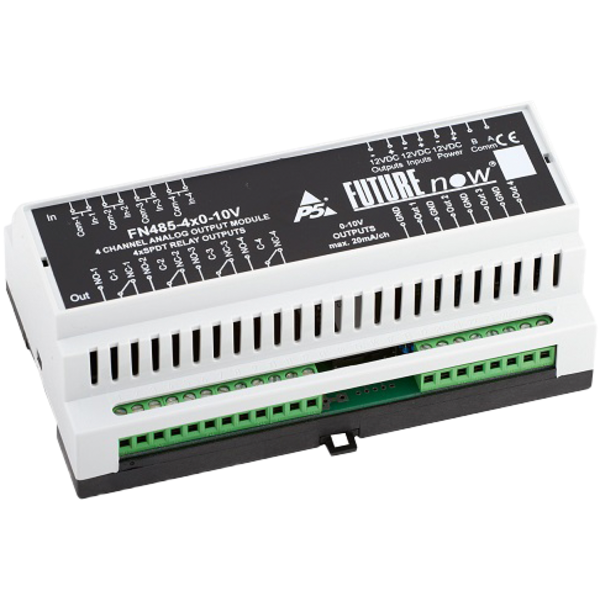

The FN485-4x0-10V four channel Intelligent DIN Rail Mountable Analog Output Module is used for dimming fluorescent and LED lighting systems (using an appropriate ballast/driver with 0-10V or 1-10V input) either via its local inputs or via FN485 bus.

• Control via RS485 or local inputs

• 4 optically isolated, analog, 0-10V outputs for dimming 4 circuits

• 4 heavy duty relays to cut power off from the loads at zero dim level

• 4 optically isolated multi-purpose inputs

• Standard DIN rail mount

• Outputs can be directly operated via local inputs without a controller

• 100 dim levels

• Dim level memory - Modules can remember their last dim level. When next powered on, lights will return to the last remembered value

• Soft start/stop with adjustable ramp rate

• Dim with adjustable ramp rate

• Bus command support for setting dim levels to discrete values

• Preset dim level

• 100+ bus commands for setting dim levels (discrete or relative), scene presets and recall, input modes of operation, timer values of day, delayed commands, etc.

• 26 groups/scenes

• Flashing mode
